Batch Reactors ORB


    Batch Reactors Orb:

    The Batch Reactor Orb is a compact benchtop jacketed reactor system that offers exceptional value and is designed by chemists as a reliable solution for batch processes. This batch reactor has an intuitive and thoughtful design to make using batch reactors easy, it also is compact and robust to save space and ensure reliability and longevity in the lab.

    The Batch Reactor Orb offers rapid height adjustment with two clamp sizes that can accommodate various vessel sizes ranging from 100ml to 10 litres. These can be interchanged quickly. The batch reactor system allows for a wide range of temperatures and has a selection of accessories and upgrades for automation available.



    Key Features:

    Batch Reactors

    - Rapid height adjustments: Instant change of vessel height without tools

    - Clever user-friendly features: Stirrer motor can be easily lifted and moved out of the way, easy vessel changes, no tools vessel height adjustments

    - Maximum chemical resistance: All wetted parts are glass or PTFE

    - Wide temperature range: -90°C to +250°C

    - Pressure range: Vacuum (50 mbara) to 0.25 barg

    - Wide vessel access area: Easy reagent additions, allows use of larger stirrers, and wide range of accessories

    - Upgrade to automation: Add the Orb Reactor Master or PC software for total automation of reaction parameters

    - Robust and reliable: Built on Syrris’ extensive experience, the Orb reactor system offers true value, ease of use and flexibility

    Wide Range of Vessels:

    The one batch reactor can allow for multiple vessel use. The technology in the Orb can allow a range of vessels from 100 mL to 10 L to be utilised on the one system. The single jacket or vacuum jacketed reactors in torispherical or round bottom profiles can be used on the system. Torispherical reactors are the ideal choice for scaling up studies in the lab.

    Batch Reactors

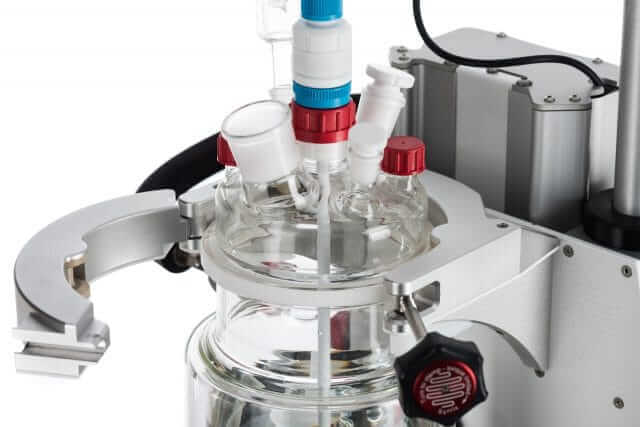

    Quick Vessel Change:

    A unique vessel clamp, oil drain system and quick connections allow vessels to be interchanged within minutes to provide maximum flexibility. The stirrer motor can be lifted out of the way to allow access to the vessels. Unlock the clamp and the lid and reactor can be removed. The oil drain function can remove oil without any fuss or spillages.

    Simple Stirrer Lift:

    The motor lift allows the stirrer motor to be rotated out of the way to give full access to the lid and ports. The stirrer motor can be relocated without the need for further alignment.

    Batch Reactors

    Exceptional Value:

    The batch reactor Orb is a serious workhorse in the laboratory as it is the batch reactor system to overcome all issues associated with fixed reactors. The system is designed and sold at an attractive price.

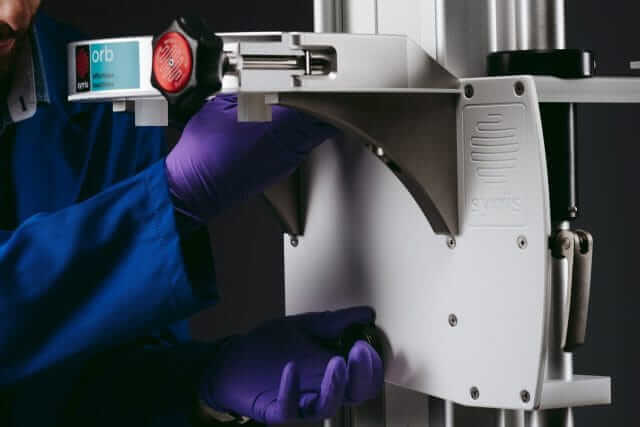

    Tool-free Height Adjustment:

    The Orb has a unique frame that the user can adjust to the vessel height without any tools so that the work can be done at a level that is suitable to the user.

    Is the Batch Reactor ORB the Solution for You?

    If so, contact a member of our sales team today. They will be happy to help with any questions you may have about the Batch Reactor ORB.

    Contact us Today!
